Standard Sliding Profile
Most-installed residential profile
- Design pressure
- +70 / -80 psf
- Max width
- 192″
- Max height
- 108″
- Max panel size
- 48″×108″ or 54″×96″
Sliding Glass Door · Impact Profile
The view stays. The hurricane risk leaves.
These impact-resistant sliding glass doors deliver a clean profile optimized for smooth operation, wide views, and robust structural safety.
- Miami-Dade NOA
- Licensed & Insured in FL
- 7 Years in Florida
Made in the USA
Get your free 24-hour estimate
30 seconds. A project advisor calls you within one business day.
Colors & Finishes
See your sliding door in every finish.
The sliding glass door opens your living space to the patio with a wall of impact glass. Click a frame finish and glass tint to preview your configuration.
Sliding Glass Door
Series 700
Florida Product Approved sliding glass door with a dual-point lock assembly and panels up to 4.5 ft wide.
Frame finish
Glass tint
Available in 2-panel, 3-panel, and pocket configurations. We confirm finishes with physical samples at your free in-home estimate.
Built for Florida
Hurricane-rated, end-to-end.
Every sliding door system we install is Florida Product Approved — certified to fulfill Florida Product Approval codes, protecting properties from high-velocity impact forces. T6 aluminum frame, tandem rollers, dual-point locks, factory-built and installed by our in-house team.
- Florida Product Approved
- T6 aluminum frame
- 7/16″ HS/HS glass
- 100% warranty
What you get
One advisor. One install crew. Two warranties.
No subcontractors. The team that quotes you is on the truck on install day — and the same team that comes back if anything needs adjustment in year three.
In-house install crew
No subcontractors, no handoffs — the same team start to finish.
Permits handled
End-to-end with your county building department.
10-year installation warranty
Stacked on top of the factory warranty.
English + Spanish
Bilingual, every step of the way.
Versatile engineering & code compliance
Florida Product Approved. Multi-family to large-span commercial.
Fully certified to fulfill Florida Product Approval codes, protecting properties from high-velocity impact forces. Select models feature reinforced astragals for exceptional negative design pressures up to -135 psf. Available in 4-track, bypass, and pocket configurations — up to 8 sliding panels expanding across walls up to 32′ wide.
- Florida Product Approved
- Up to -135 psf negative pressure
- 4-track, bypass & pocket
- Up to 8 panels / 32′ wide
Core performance & size specifications
Three certified profiles. One install team.
Standard, Architectural, and Reinforced profiles cover residential lanais to multi-family and commercial spans. Design pressure, max panel size, and height range differ by profile — GlassIQ specifies the right one for your opening during the in-home estimate.
Architectural Sliding Profile
Floor-to-ceiling & tall ceiling applications
- Design pressure
- +70 / -75 psf
- Max panel width
- 54″
- Max height
- 120″ to 144″
- Max panel size
- 48″ max width
Reinforced Sliding Profile
Multi-family & commercial high-load
- Design pressure
- +70 / -135 psf
- Max width
- 108″
- Max height
- 96″
- Max panel size
- 60″×96″ or 48″×120″
Standard features
T6 aluminum. Ogee bead profile. Dual-point lock.
Manufactured from heavy-gauge aluminum T6 alloy with concealed installation and assembly screws for a clean finish. Features double weatherstripping, an aesthetic ogee bead profile, smooth-gliding heavy-duty tandem rollers, and secure dual-point lock assemblies.
- Heavy-gauge T6 aluminum alloy
- Ogee bead profile
- Tandem rollers heavy-duty
- Dual-point lock assembly
Structure & assembly
Heavy-gauge aluminum T6 alloy with concealed installation and assembly screws for a clean finish.
- T6 aluminum alloy
- Concealed assembly screws
- Clean exterior finish
Hardware & glazing
Double weatherstripping, ogee bead profile, heavy-duty tandem rollers, and secure dual-point lock assemblies.
- Double weatherstripping
- Heavy-duty tandem rollers
- Dual-point lock assemblies
Glass & frame finishes
Standard glass color options include Clear, White, Green, Gray, Bronze, and Azuria. Frame finishes: White or Bronze.
- Clear · White · Green · Gray
- Bronze · Azuria
- Frames: White or Bronze
Customization options & upgrades
Glazing, sill risers, and architectural detail.
Upgrade the standard glass package for thermal performance, add a sill riser profile matched to your water-resistance requirements, or layer in colonial muntins and upgraded bottom rails for a classic look.
Glazing packages
Standard 7/16″ HS/HS can be upgraded to 1″ TMP/HS with energy-efficient LoE coatings and argon-insulated glass for enhanced thermal performance.
- Standard: 7/16″ HS/HS
- Premium: 1″ TMP/HS insulated
- LoE coatings + argon gas fill
Sill riser upgrades
Tailor your water-resistance rating with three sill riser options, from ADA-compatible low-profile to heavy-duty 70 psf-rated.
- 1″ sill riser (not water rated)
- 2″ sill riser (rated 47 psf)
- 2 3/4″ heavy-duty (up to 70 psf)
Muntins & rails
Extruded 1″ double-applied colonial muntins in three patterns. Standard 4″ bottom rails can be upgraded to 9″ for a classic French-door look.
- Flat-Flat · Ogee-Flat · Ogee-Ogee
- Standard: 4″ bottom rail
- Upgrade: 9″ bottom rail (French look)
Sliding door FAQ
Common questions.
What design pressure do impact sliding doors achieve?
Three certified profiles: Standard (+70/-80 psf), Architectural (+70/-75 psf) for tall openings over 120″ to 144″, and Reinforced (+70/-135 psf) for multi-family and commercial high-load applications.
How wide can a sliding glass door system be?
Standard profile supports openings up to 192″. Bypass, 4-track, and pocket configurations allow up to 8 sliding panels expanding across walls up to 32′ wide. Reinforced profile max width is 108″.
What glass comes standard and what upgrades are available?
Standard is 7/16″ HS/HS impact glass in six finishes (Clear, White, Green, Gray, Bronze, Azuria) with White or Bronze frames. Upgrade to 1″ TMP/HS insulated glass with LoE coatings and argon gas for enhanced thermal performance.
What sill riser options are available?
Three options: 1″ sill riser (not water rated), 2″ sill riser (rated for 47 psf water resistance), and a heavy-duty 2 3/4″ sill riser rated up to 70 psf for maximum water-resistance.
Can sliding doors include colonial muntins and upgraded rails?
Yes. Extruded 1″ double-applied colonial muntins are available in Flat-Flat, Ogee-Flat, or Ogee-Ogee patterns. Standard 4″ bottom rails can be upgraded to 9″ bottom rails for a classic French-door look.
Product up close
See the build quality up close.
Every unit below is a full-size product display — the same frames, laminated glass, and hardware we install in your home. Click any photo to view full size, or come feel the difference at our Sarasota showroom.
Single-hung impact window
Sliding (horizontal roller) impact window
Casement impact window
Picture (fixed) impact window
Picture window with pool view

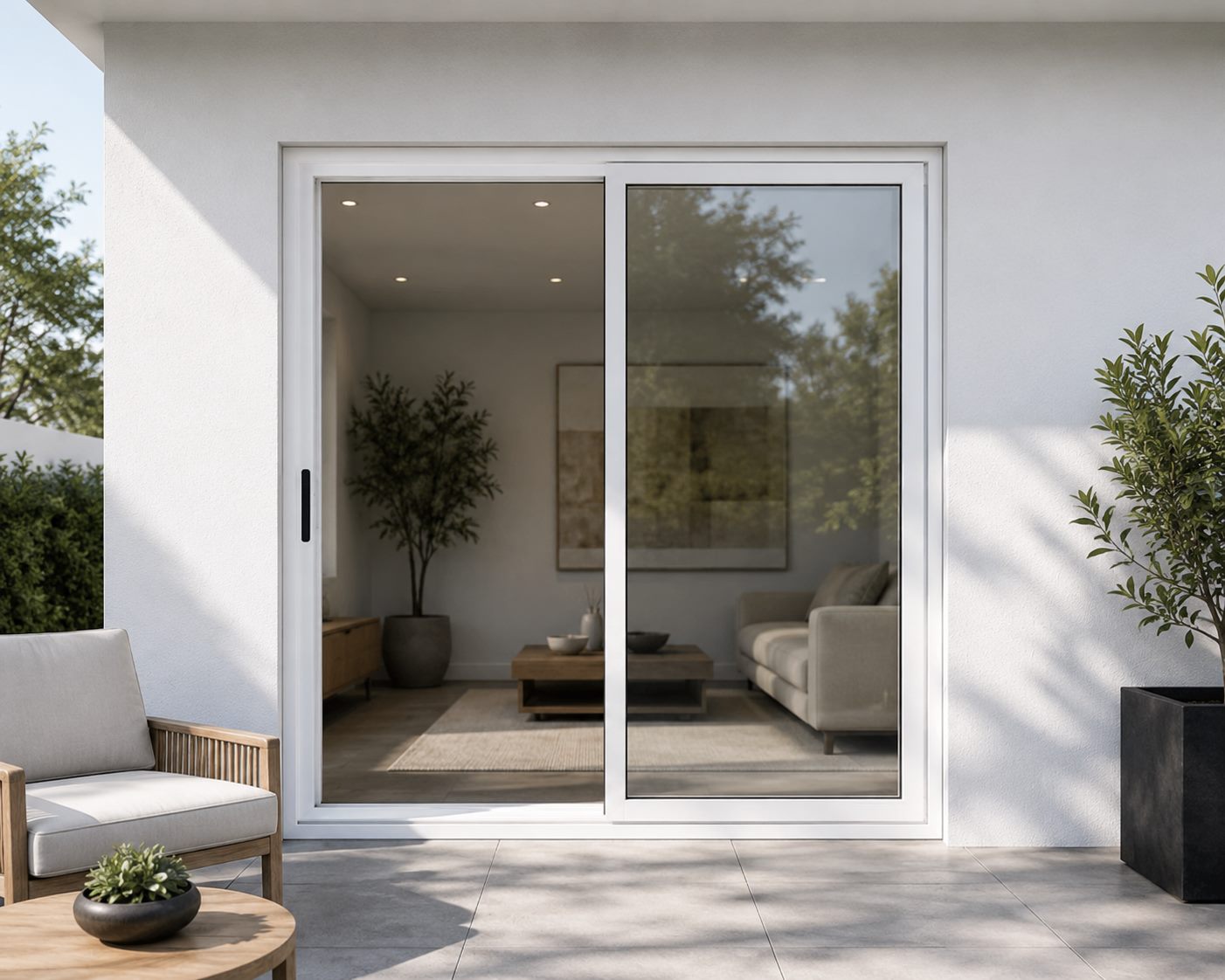

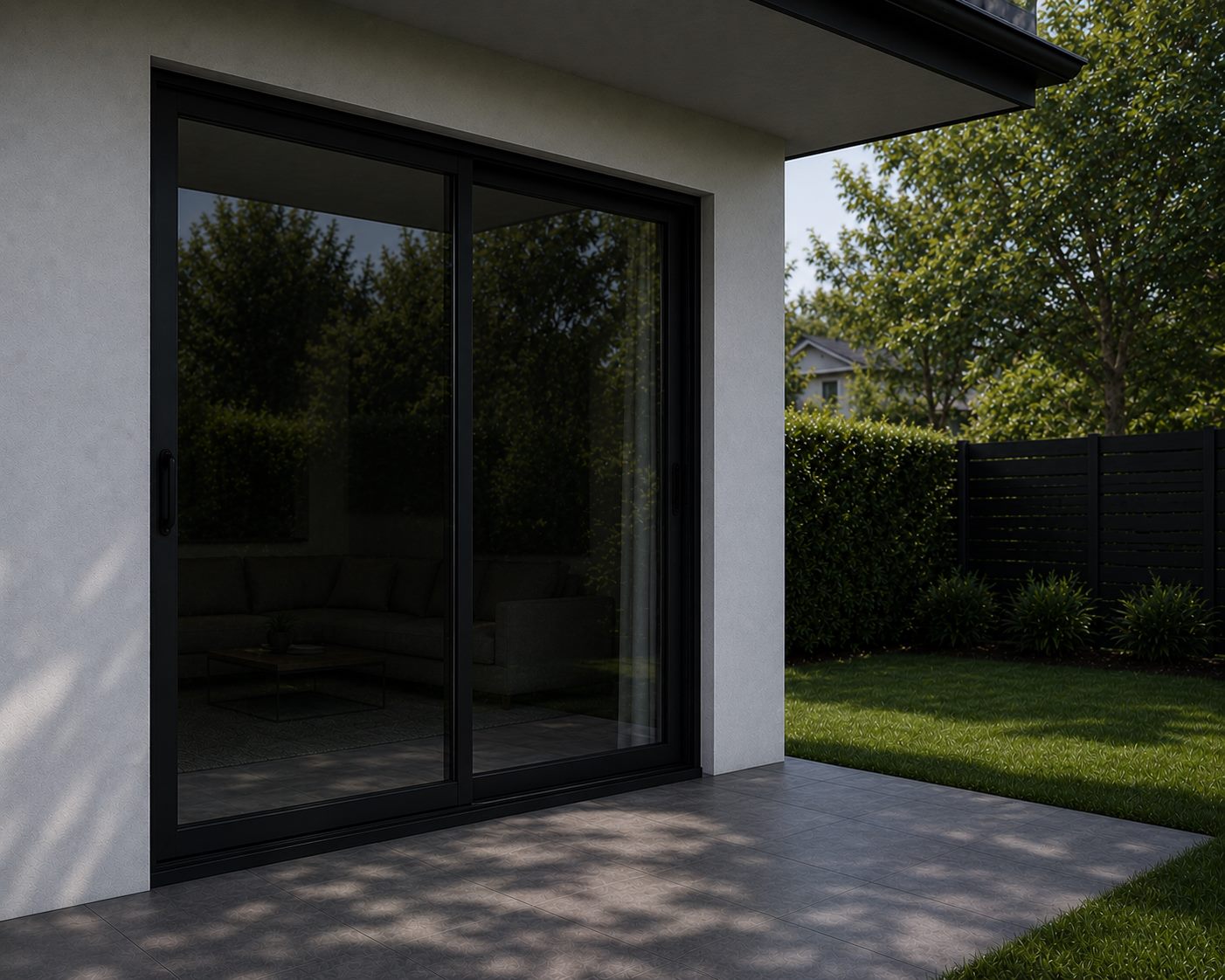

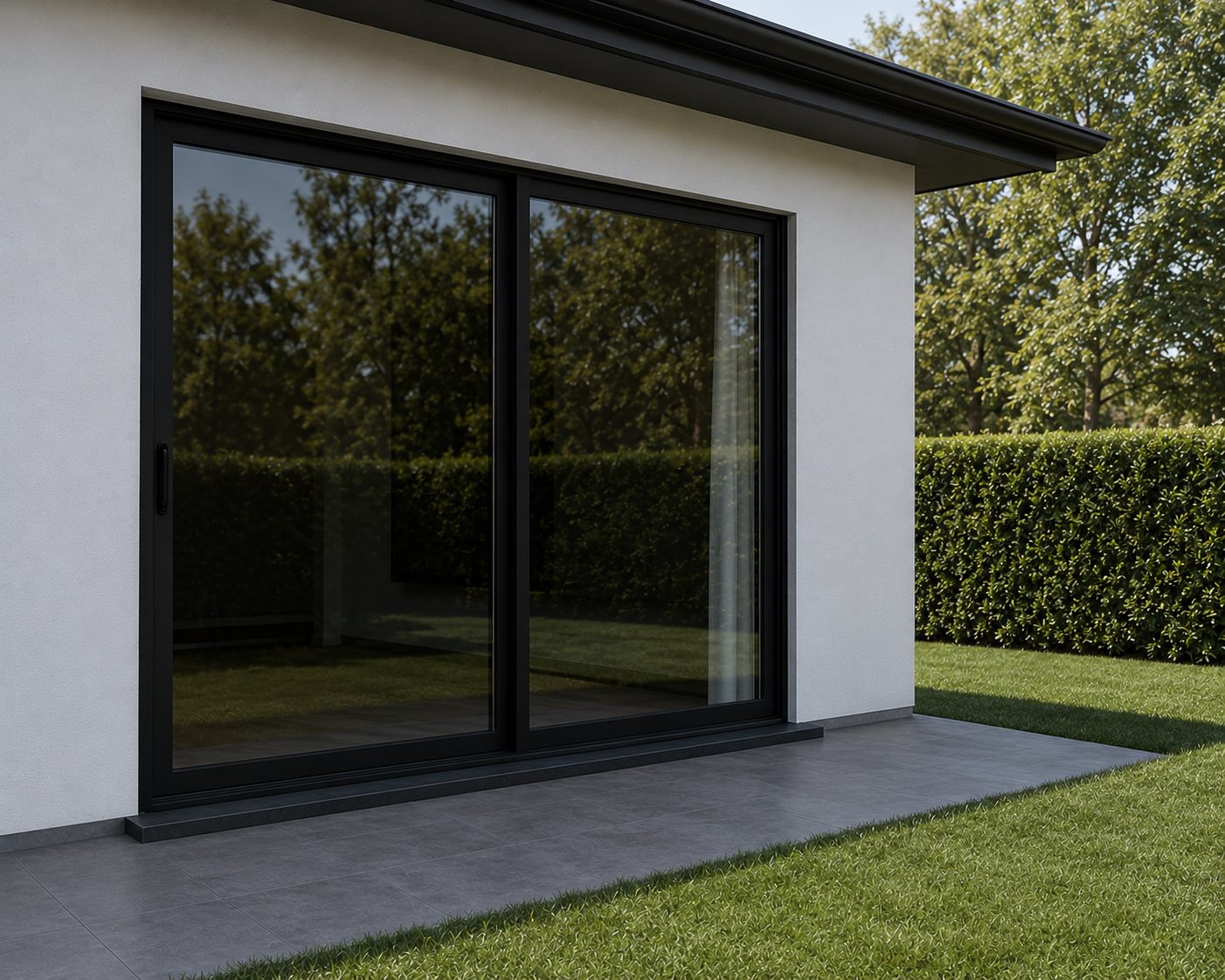

Sliding glass patio doors
French impact doors
Bifold impact doors
Front entry impact door
Impact windows and doors install
Get My Free 24-Hour Estimate
Or visit the showroom: 4123 N Tamiami Trail, Sarasota · Mon–Fri 9–4
Get your sliding door quote.
Tell us your opening width, height, and use case. We’ll specify the right profile, glass package, and sill riser — and give you an estimate within 24 hours.
